CPC BIOPHARMA MPX Series

MPX Series

Conectores de pequeño formato para conexiones rápidas.

Los acoplamientos de la serie MPX agregan facilidad de uso y seguridad a sus aplicaciones de manejo de fluidos más críticas.

Elija entre una línea completa de conectores y configuraciones, incluidas tapas de sellado a presión y tapones en tamaños para adaptarse a tubos de 3/8 "y 1/2".

Los acoplamientos MPX ofrecen manguitos de bloqueo opcionales para proteger contra las desconexiones accidentales. Además, las mitades de acoplamiento se pueden girar cuando se conectan para reducir los dobleces del tubo.

Características y Beneficios

Características

Pestillo ergonómico
Materiales USP Clase VI
Esterilizable en autoclave, Et0, e-beam o gamma
Barrena de manguera sin línea de separación
Materiales sin ADCF

Beneficios

Cumple con los requisitos BSE / TSE
Elimina la posible ruta de fuga
Reutilizable, pero lo suficientemente económico como para permitir la desechabilidad
Cumple con los requisitos de biocompatibilidad
Fácil de operar, incluso con las manos enguantadas

Especificaciones técnicas

	Materials:
	Main component:	Polycarbonate (purple tint), USP Class VI, ADCF Polysulfone (amber tint), USP Class VI, ADCF
	Locking Sleeves:	Polysulfone (white), USP Class VI , ADCF
	Thumb latches:	Polycarbonate (white), Polysulfone (amber tint), USP Class VI, ADCF
	O-rings:	Silicone (clear), platinum-cured, USP Class VI, ADCF
	Sterilization:
	Gamma irradiation:	Up to 50 kGy irradiation
	Autoclave:	Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only. Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.

ADVERTENCIA: la presión, la temperatura, los productos químicos y el entorno operativo pueden afectar el rendimiento de los acoplamientos. Es responsabilidad del cliente probar la idoneidad de los productos de Colder en sus propias condiciones de aplicación.

Cv Value

Cv ~ 14.2 (204.60) max

Legend

Straight-Through

Single Shut-Off

Double Shut-Off

Non-Spill

Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses)

Productos

Bodies

Caps & Plugs

Inserts

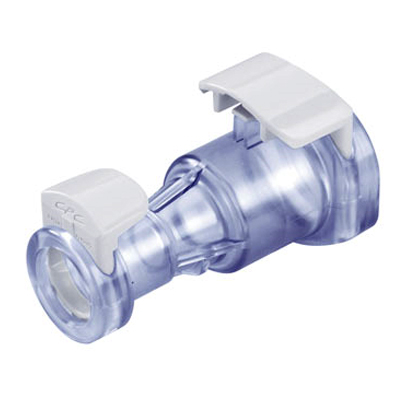

Part #:	MPC17X1703
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

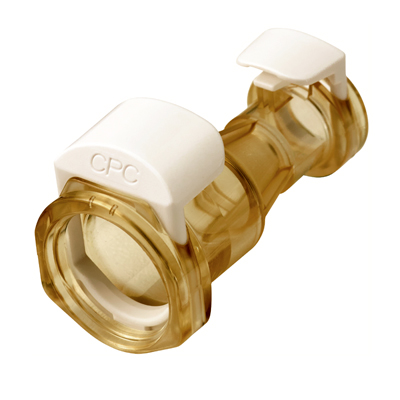

MPC Body x MPX Back-to-Back Body Adapter

Part #:	MPC17X1739
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

1/2 Hose Barb Non-Valved Coupling Body

Part #:	MPX17803
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

1/2 Hose Barb Non-Valved Coupling Body

Part #:	MPX17839
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

MPX to MPX Back-to-Back Body Adapter

Part #:	MPX17X1703
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

MPX to MPX Back-to-Back Body Adapter

Part #:	MPX17X1739
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

3/4 Sanitary Coupling Body

Part #:	MPX3301239
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

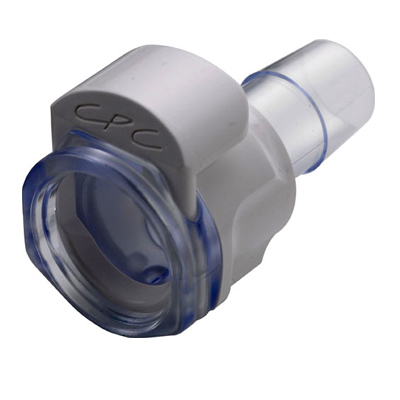

1/2 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPXK17803
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

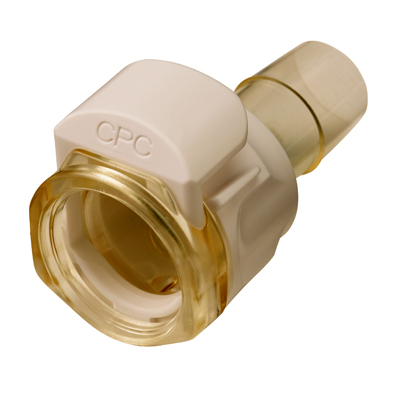

1/2 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPXK17839
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

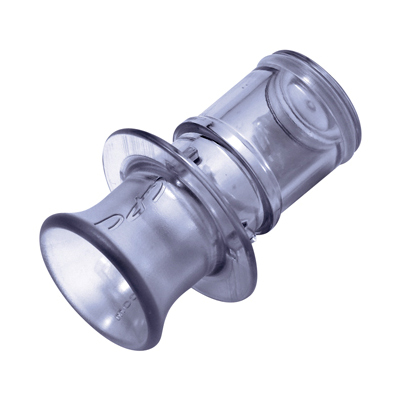

MPX Coupling Plug

Part #:	MPX30003M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

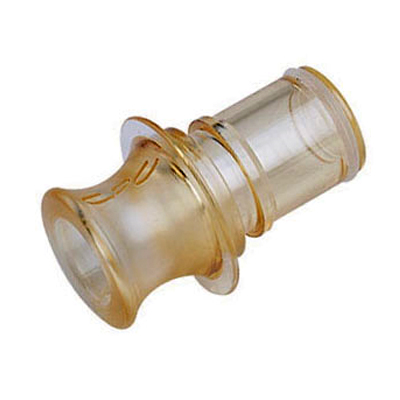

MPX Coupling Plug

Part #:	MPX30039M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

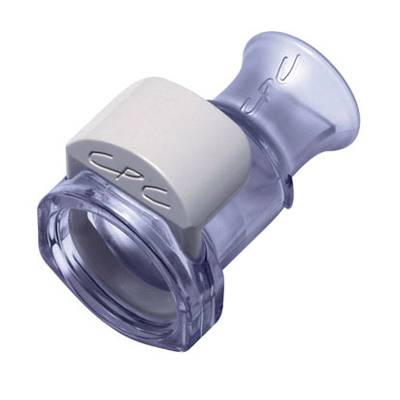

MPX Coupling Cap

Part #:	MPX32003
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

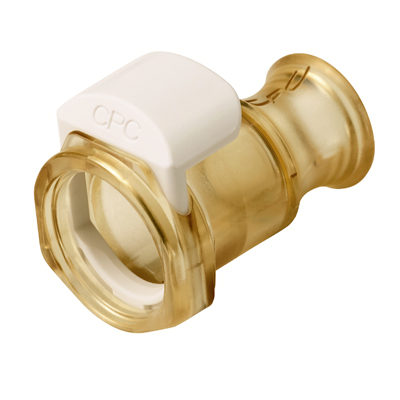

MPX Coupling Plug

Part #:	MPX32039
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

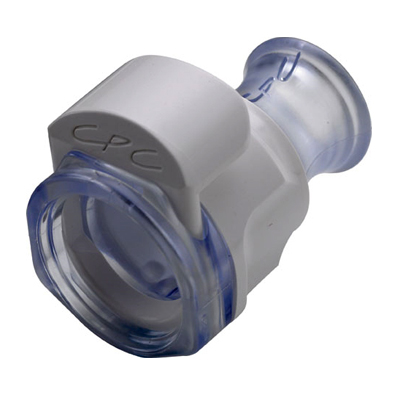

MPX Coupling Cap, Locking

Part #:	MPXK32003
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Material Finish:	Natural

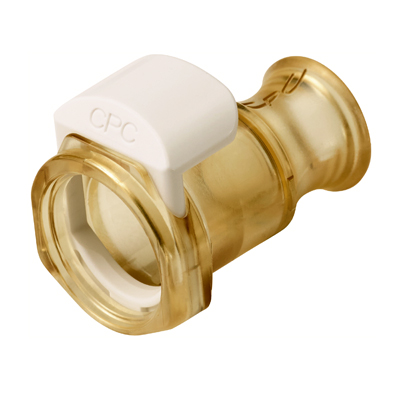

MPX Coupling Cap, Locking

Part #:	MPXK32039
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Material Finish:	Molded Grey

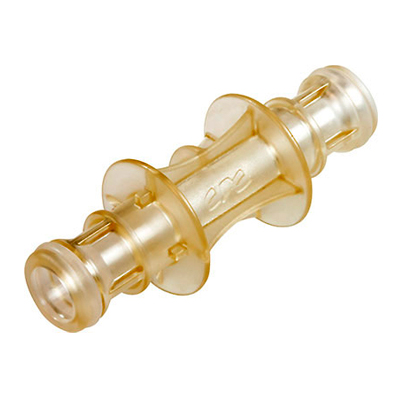

MPC to MPC Back-to-Back Insert Adapter

Part #:	MPC22C2239M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

MPC to MPX Back-to-Back Insert Adapter

Part #:	MPC22X2239M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

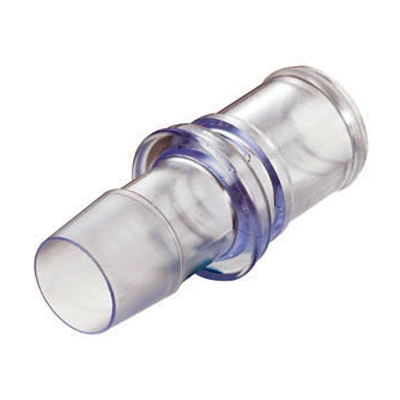

3/8 Hose Barb Non-Valved Coupling Insert

Part #:	MPX22603M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

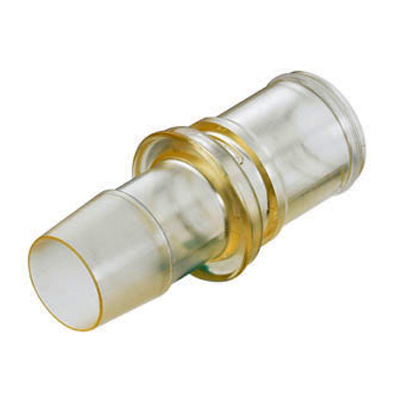

3/8 Hose Barb Non-Valved Coupling Insert

Part #:	MPX22639M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

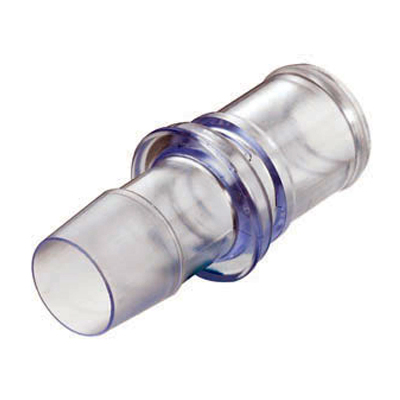

1/2 Hose Barb Non-Valved Coupling Insert

Part #:	MPX22803M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

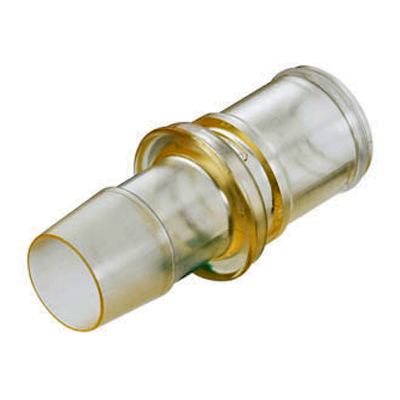

1/2 Hose Barb Non-Valved Coupling Insert

Part #:	MPX22839M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

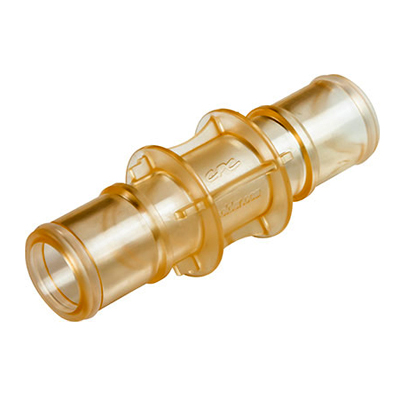

MPX to MPX Back-to-Back Insert Adapter

Part #:	MPX22X2239M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural
