CPC BIOPHARMA MPC Series

MPC Series

Conectores de pequeño formato para conexiones rápidas.

Los acoplamientos de la serie MPC agregan facilidad de uso y seguridad a sus aplicaciones de manejo de fluidos más críticas.

Elija entre una línea completa de conectores y configuraciones, incluidas tapas y tapones de sellado a presión, en tamaños que se adaptan a tubos de 1/8 ", 1/4" y 3/8 ".

Los acoplamientos MPC ofrecen manguitos de bloqueo opcionales para brindar mayor protección contra desconexiones accidentales.

Además, las mitades del acoplamiento se pueden girar cuando se conectan para reducir los dobleces del tubo.

Características y Beneficios

Características

Materiales USP Clase VI
Pestillo ergonómico
Barrena de manguera sin línea de separación
Materiales libres de EEB / EET
Esterilizable en autoclave, Et0, e-beam o gamma

Beneficios

Cumple con los requisitos de ADCF
Elimina la posible ruta de fuga
Reutilizable, pero lo suficientemente económico como para permitir la desechabilidad
Cumple con los requisitos de biocompatibilidad
Fácil de operar, incluso con las manos enguantadas

Especificaciones técnicas

	Pressure:	Up to 60 psi, 4.1 bar
	Temperature:	ABS: -40°F to 160°F (-40°C to 71°C) Polycarbonate: -40°F to 250°F (-40°C to 121°C) Polysulfone: -40°F to 300°F (-40°C to 149°C)
	Materials:
	Main component:	ABS (white), USP Class VI, ADCF Polycarbonate (purple tint), USP Class VI, ADCF Polysulfone (amber tint), USP Class VI, ADCF
	Locking Sleeves:	Polysulfone (white), USP Class VI , ADCF
	Thumb latches:	Polycarbonate (white), Polysulfone (amber tint), USP Class VI, ADCF
	O-rings:	Silicone (clear), platinum-cured, USP Class VI, ADCF and Buna-N (black), USP Class V
	Tubing sizes:	1/8", 1/4" and 3/8" ID (3.22mm, 6.4mm and 9.5mm ID)
	Sterilization:
	Gamma irradiation:	Up to 50 kGy irradiation
	Autoclave:	Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only. Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.

ADVERTENCIA: la presión, la temperatura, los productos químicos y el entorno operativo pueden afectar el rendimiento de los acoplamientos. Es responsabilidad del cliente probar la idoneidad de los productos de Colder en sus propias condiciones de aplicación.

Cv Value

Cv~5.5 (79.25) max

Legend

Straight-Through

Single Shut-Off

Double Shut-Off

Non-Spill

Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses)

Productos

Bodies

Caps & Plugs

Inserts

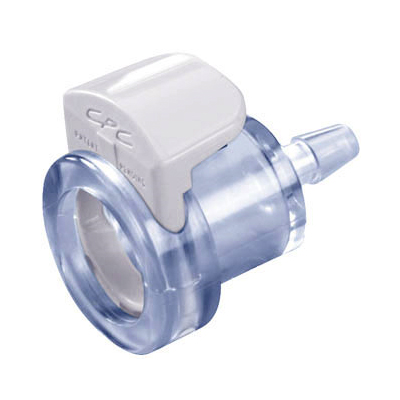

Part #:	MPC17002T03
Material:	Polycarbonate
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

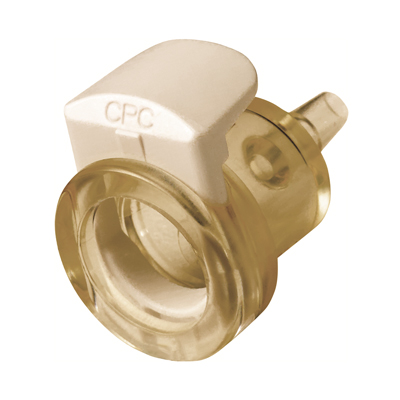

1/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17002T39
Material:	Polysulfone
Color:	Amber tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17004T
Material:	ABS
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Valve Options:	Non-Valved
Material Finish:	Molded White

1/4 Hose Barb Non-Valved In-Line Coupling Body

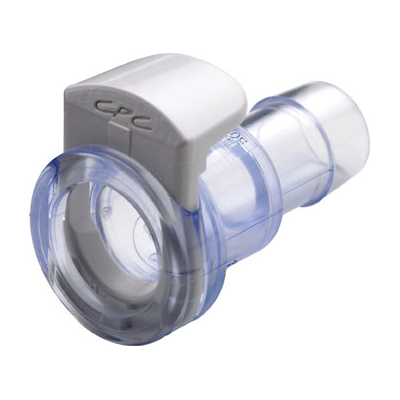

Part #:	MPC17004T03
Material:	Polycarbonate
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved In-Line Coupling Body

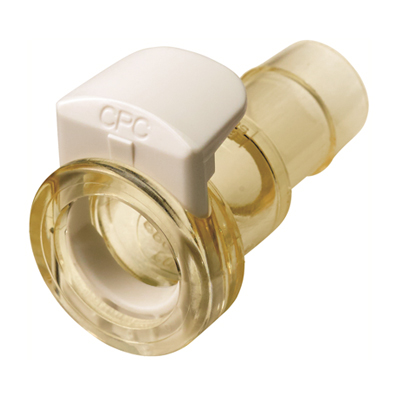

Part #:	MPC17004T39
Material:	Polysulfone
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

3/8 Hose Barb Non-Valved In-Line Coupling Body

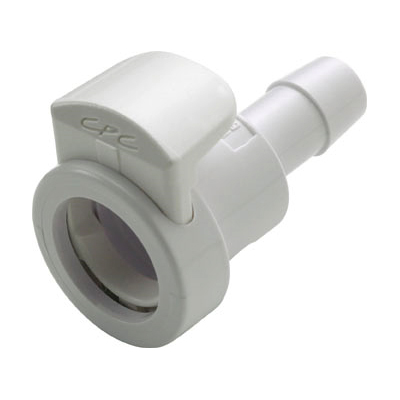

Part #:	MPC17006T
Material:	ABS
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Valve Options:	Non-Valved
Material Finish:	Molded White

3/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17006T03
Material:	Polycarbonate, USP Class VI, ADCF
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

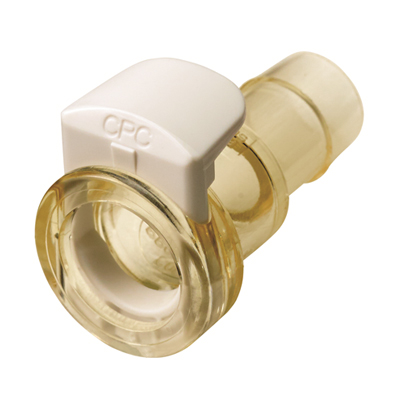

3/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC17006T39
Material:	Polysulfone, USP Class VI, ADCF
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

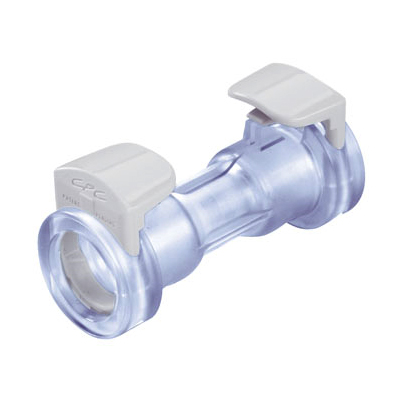

MPC Body x MPC Back-to-Back Body Adapter

Part #:	MPC17C1703
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

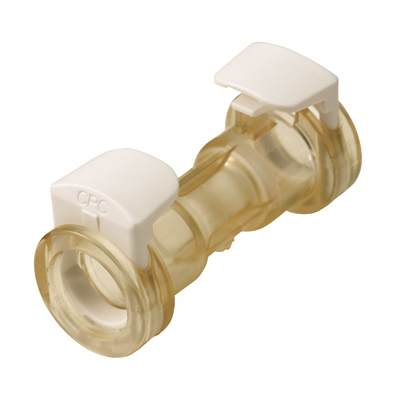

MPC Body x MPC Back-to-Back Body Adapter

Part #:	MPC17C1739
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

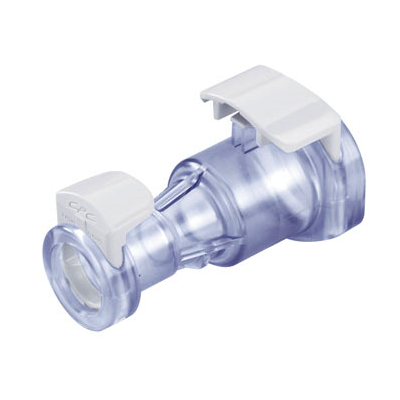

MPC Body x MPX Back-to-Back Body Adapter

Part #:	MPC17X1703
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

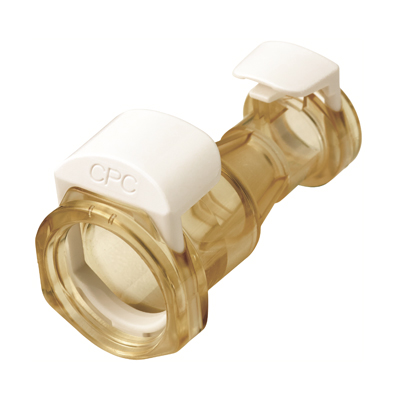

MPC Body x MPX Back-to-Back Body Adapter

Part #:	MPC17X1739
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

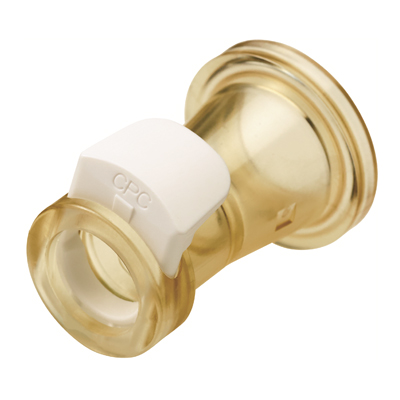

3/4 Sanitary Non-Valved Coupling Body

Part #:	MPC3301239
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

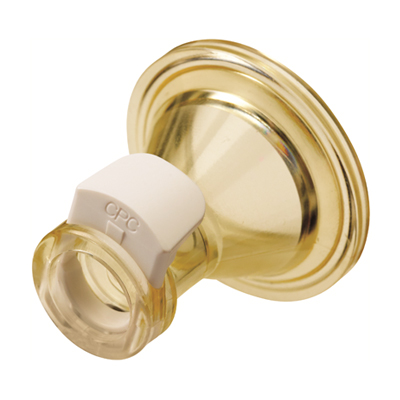

1 Sanitary Non-Valved Coupling Body

Part #:	MPC3301639
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock

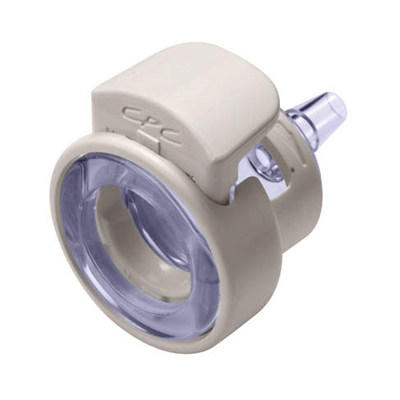

Part #:	MPCK17002T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

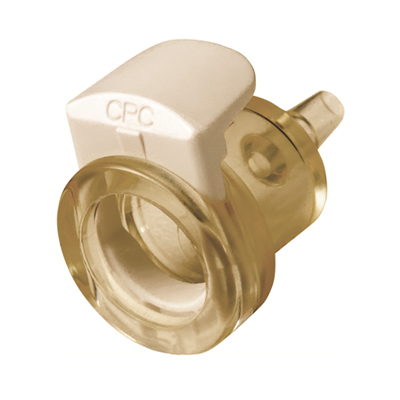

1/8 Hose Barb Non-Valved In-Line Coupling Body With Lock

Part #:	MPCK17002T39
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved Coupling Body With Lock

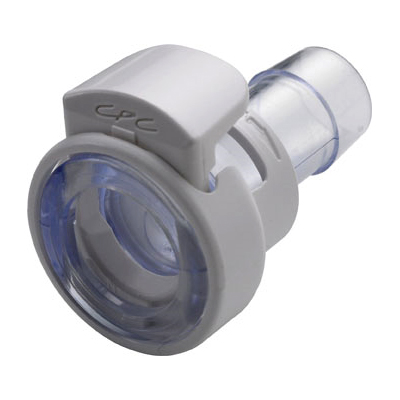

Part #:	MPCK17004T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

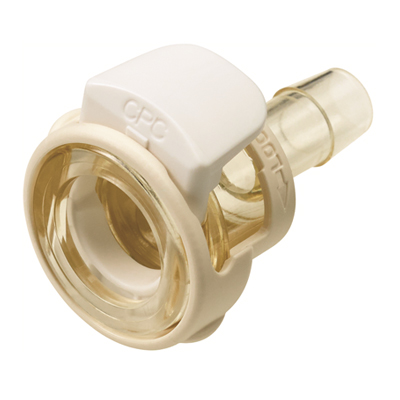

1/4 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPCK17004T39
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

3/8 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPCK17006T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

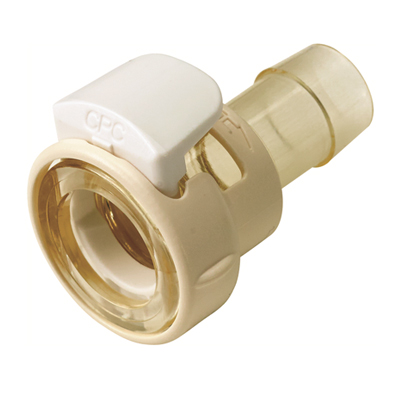

3/8 Hose Barb Non-Valved Coupling Body With Lock

Part #:	MPCK17006T39
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Valve Options:	Non-Valved
Material Finish:	Natural

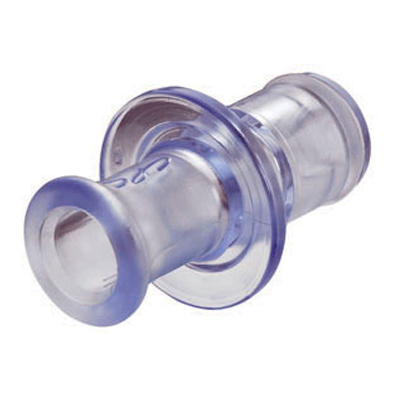

MPC Coupling Plug

Part #:	MPC30003M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

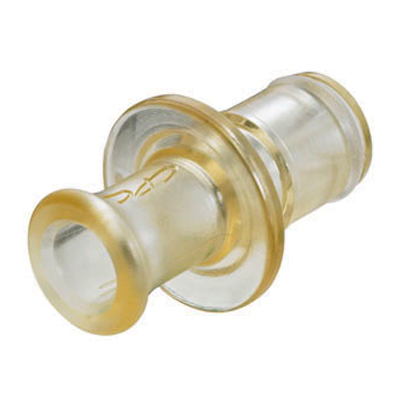

MPC Coupling Plug

Part #:	MPC30039M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

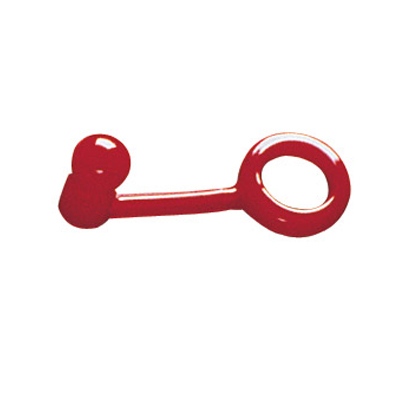

MPC Tethered Plug

Part #:	MPC30L
Material:	PVC
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Red
Temp. Range:	0°F to 0°F (0°C to 0°C)
Mounting Option:	Free Floating
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded Red

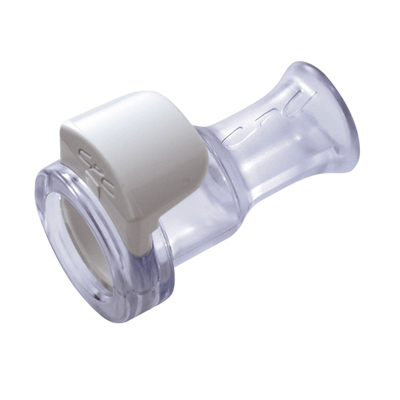

MPC Coupling Cap

Part #:	MPC32003
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

MPC Coupling Cap

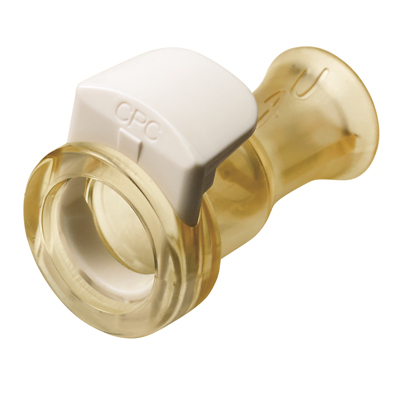

Part #:	MPC32039
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

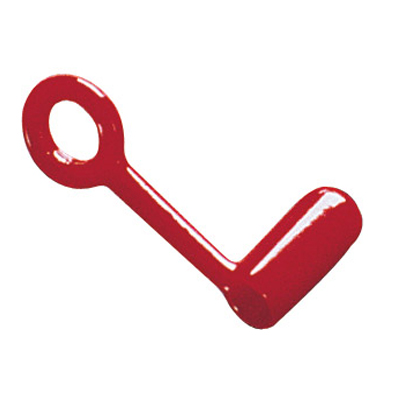

MPC Tethered Cap

Part #:	MPC32L
Material:	PVC
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Red
Temp. Range:	0°F to 0°F (0°C to 0°C)
Mounting Option:	Free Floating
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded Red

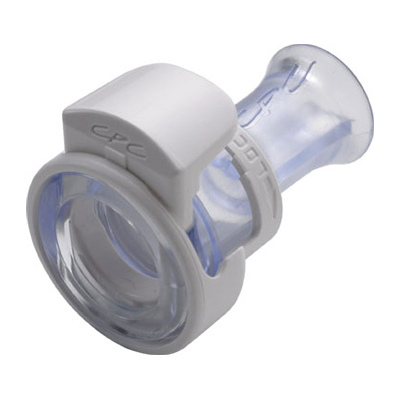

MPC Sealing Cap With Lock

Part #:	MPCK32003
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Material Finish:	Natural

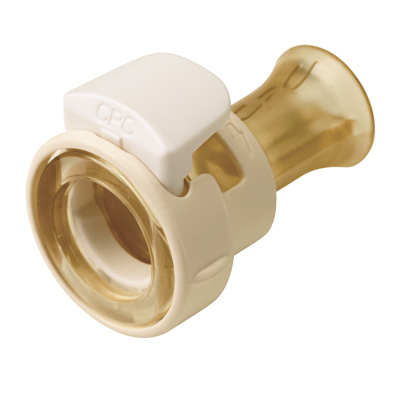

MPC Sealing Cap With Lock

Part #:	MPCK32039
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Material Finish:	Natural

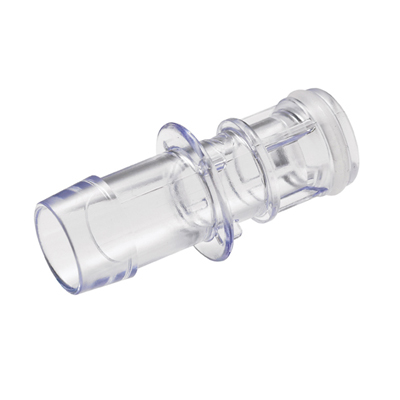

1/8 Hose Barb Non-Valved Class VI Polycarbonate Coupling Insert

Part #:	MPC22002T03
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Buna-N USP Class V
Valve Options:	Non-Valved
Material Finish:	Natural

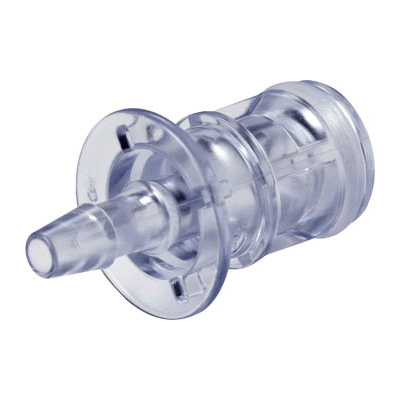

1/8 Hose Barb Non-Valved In-Line Coupling Insert

Part #:	MPC22002T03M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

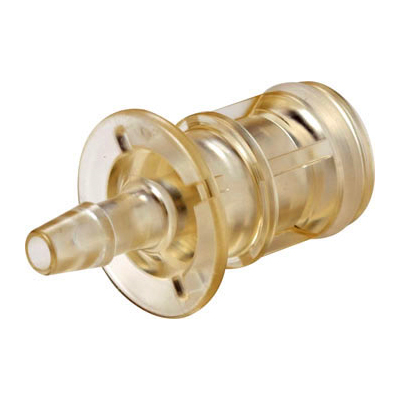

1/8 Hose Barb Non-Valved In-Line Coupling Body

Part #:	MPC22002T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

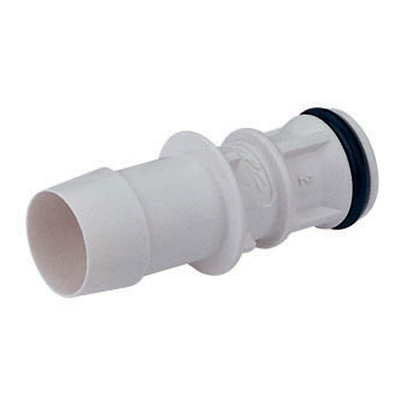

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004T
Material:	ABS
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Buna-N USP Class V
Valve Options:	Non-Valved
Material Finish:	Molded White

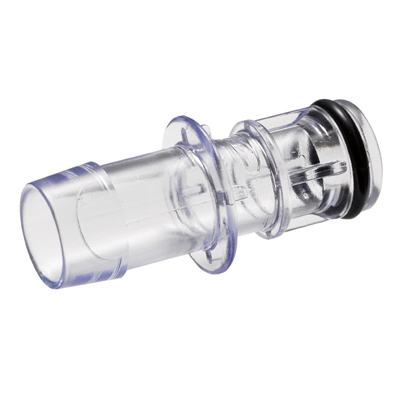

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004T03
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Buna-N USP Class V
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004T03M
Material:	Polycarbonate, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Purple Tint
Temp. Range:	-40°F to 250°F (-40°C to 121°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004T39M
Material:	Polysulfone, USP Class VI, ADCF
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	Amber Tint
Temp. Range:	-40°F to 300°F (-40°C to 149°C)
Mounting Option:	Free Floating
Sterilization:	Gamma, Autoclave
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Natural

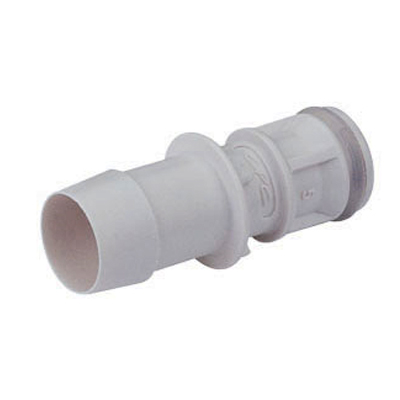

1/4 Hose Barb Non-Valved Coupling Insert

Part #:	MPC22004TM
Material:	ABS
Pressure Range:	Up to 60 psi, 4.1 bar
Color:	White
Temp. Range:	-40°F to 160°F (-40°C to 71°C)
Mounting Option:	Free Floating
Sterilization:	Gamma
Seal Options:	Silicone, platinum-cured, USP Class VI, ADCF
Valve Options:	Non-Valved
Material Finish:	Molded White
